One complete office infrastructure project combining firewall security, shared NAS storage, and CCTV recording in the same office network.
Detailed workflow, technical stack and visual structure are presented below for client trust.
Sensitive internal data is converted into safe public portfolio wording.
This project combines FortiGate office network setup, QNAP NAS file storage and CCTV recording workflow inside one office infrastructure implementation. Instead of treating network, storage and surveillance as separate jobs, the office was planned as one connected IT environment where internet, LAN users, shared folders, NAS storage, camera recording and monitoring work together from the same secured office setup.
The office needed one reliable infrastructure foundation instead of separate unmanaged systems for internet, file storage and CCTV. Without a controlled firewall, shared NAS access and proper camera recording workflow, users may face network confusion, scattered files, weak access control, storage duplication and difficulty reviewing office security footage.
A combined office IT setup was prepared with FortiGate firewall for network security, switches and cabling for stable workstation connectivity, QNAP NAS for centralised shared folders and CCTV recording integration, plus monitoring access for office camera review. The result is a cleaner, controlled and easier-to-maintain office infrastructure workflow.
This portfolio entry merges the earlier Project 05 FortiGate Office Network Setup, Project 06 QNAP NAS Office File System and Project 07 CCTV + QNAP QVR Pro Setup because all three belong to the same completed office infrastructure environment.

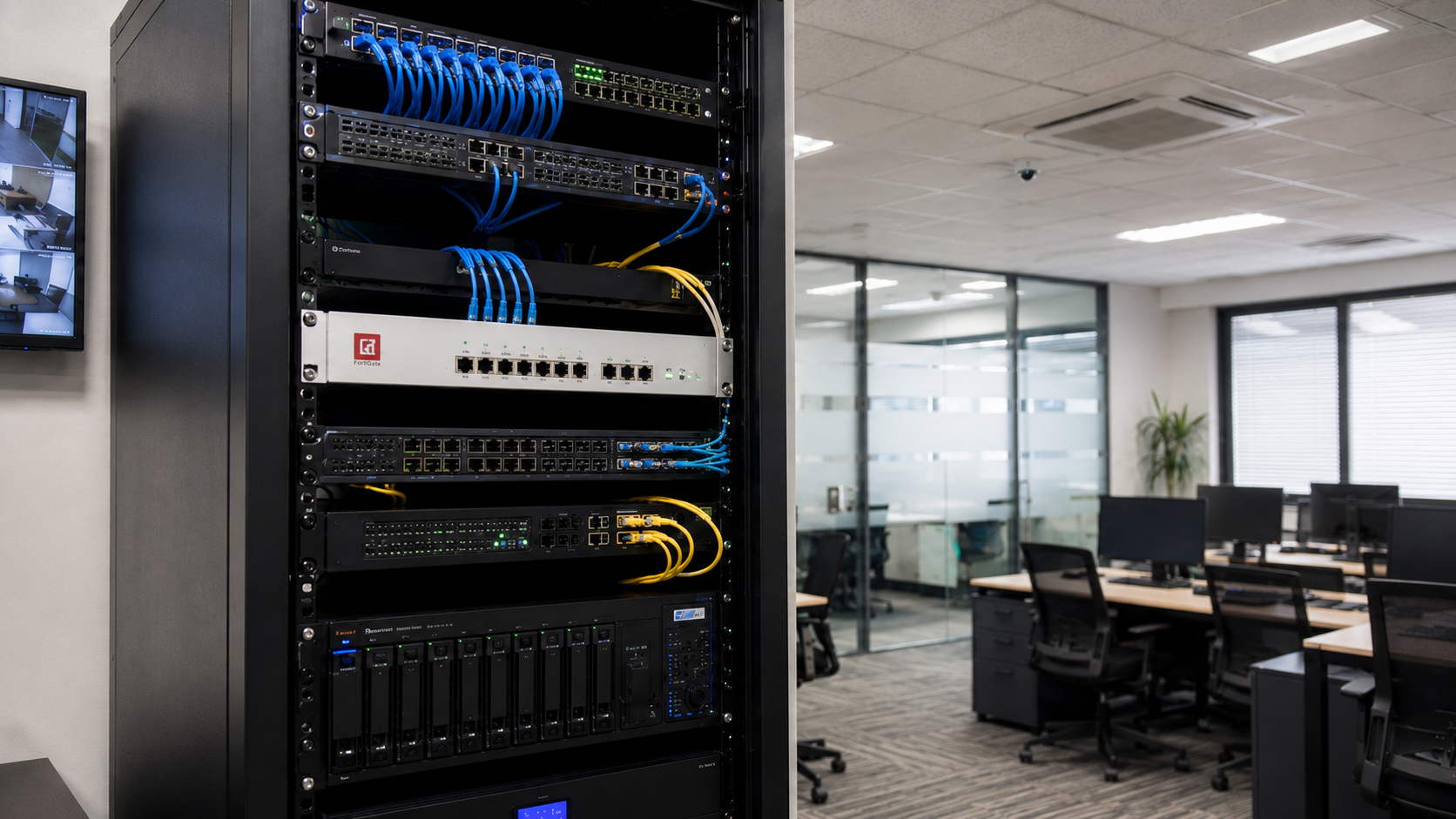

Internet reaches the office network through the FortiGate firewall so connectivity and basic security control start from one central device.
Switches and structured cables distribute the office network to computers, printers, NAS storage and CCTV devices.
Firewall rules and access planning help separate normal office traffic from unnecessary or unsafe access routes.

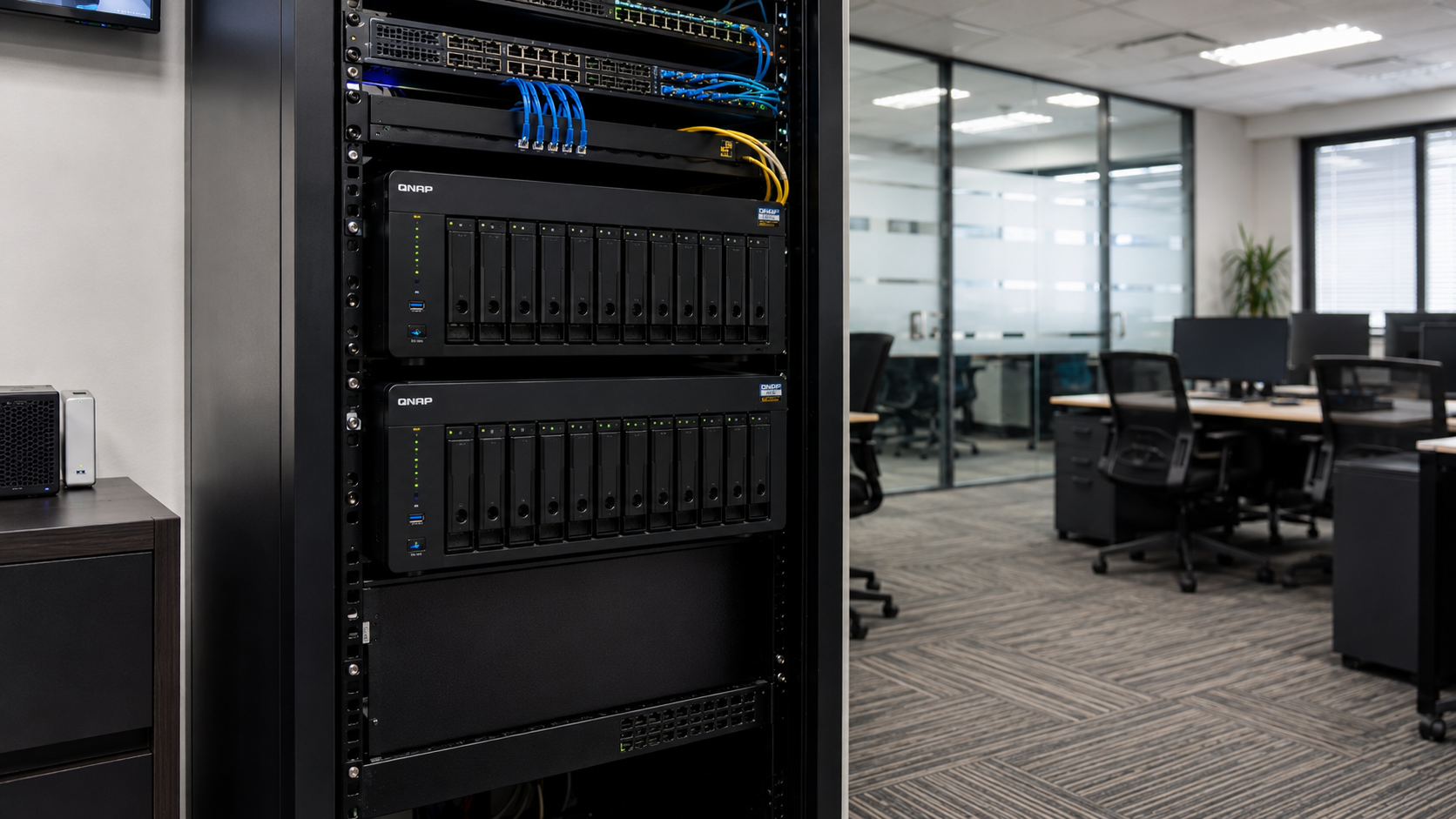

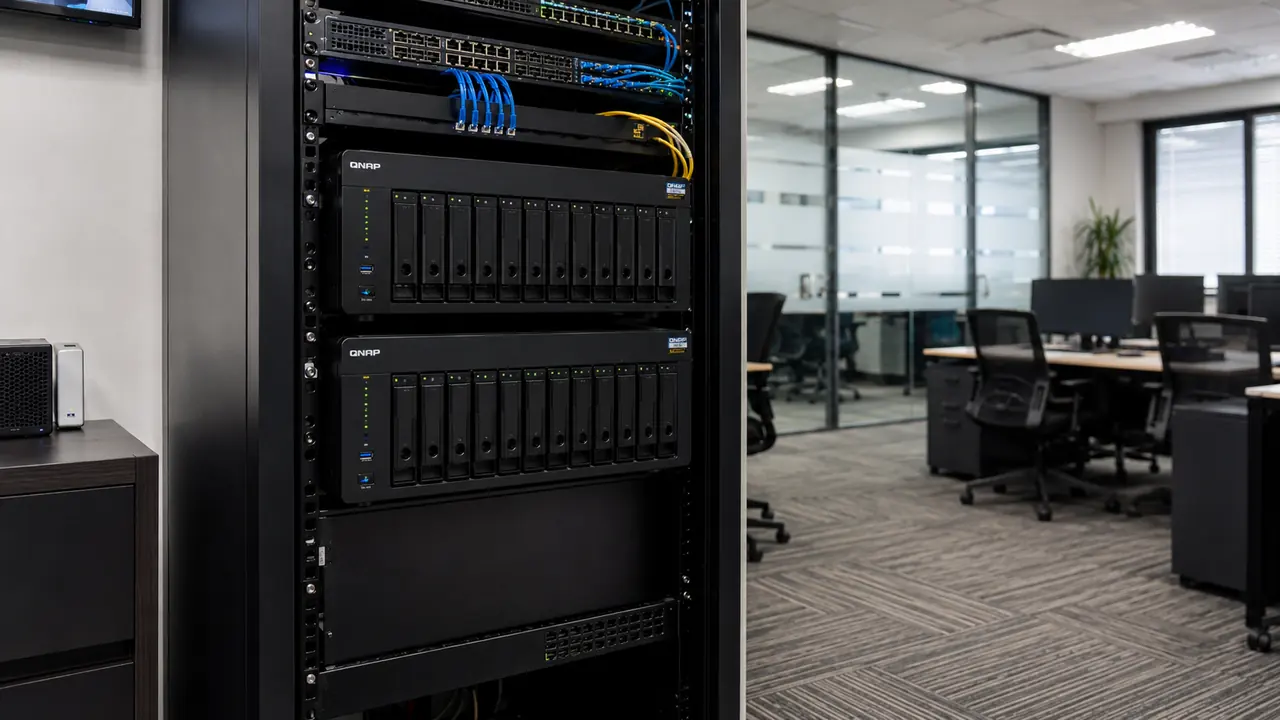

QNAP NAS keeps shared folders in one central place so office users can access project files through controlled permissions.
User and workstation access is assigned based on practical office roles, helping staff use the correct shared folders every day.

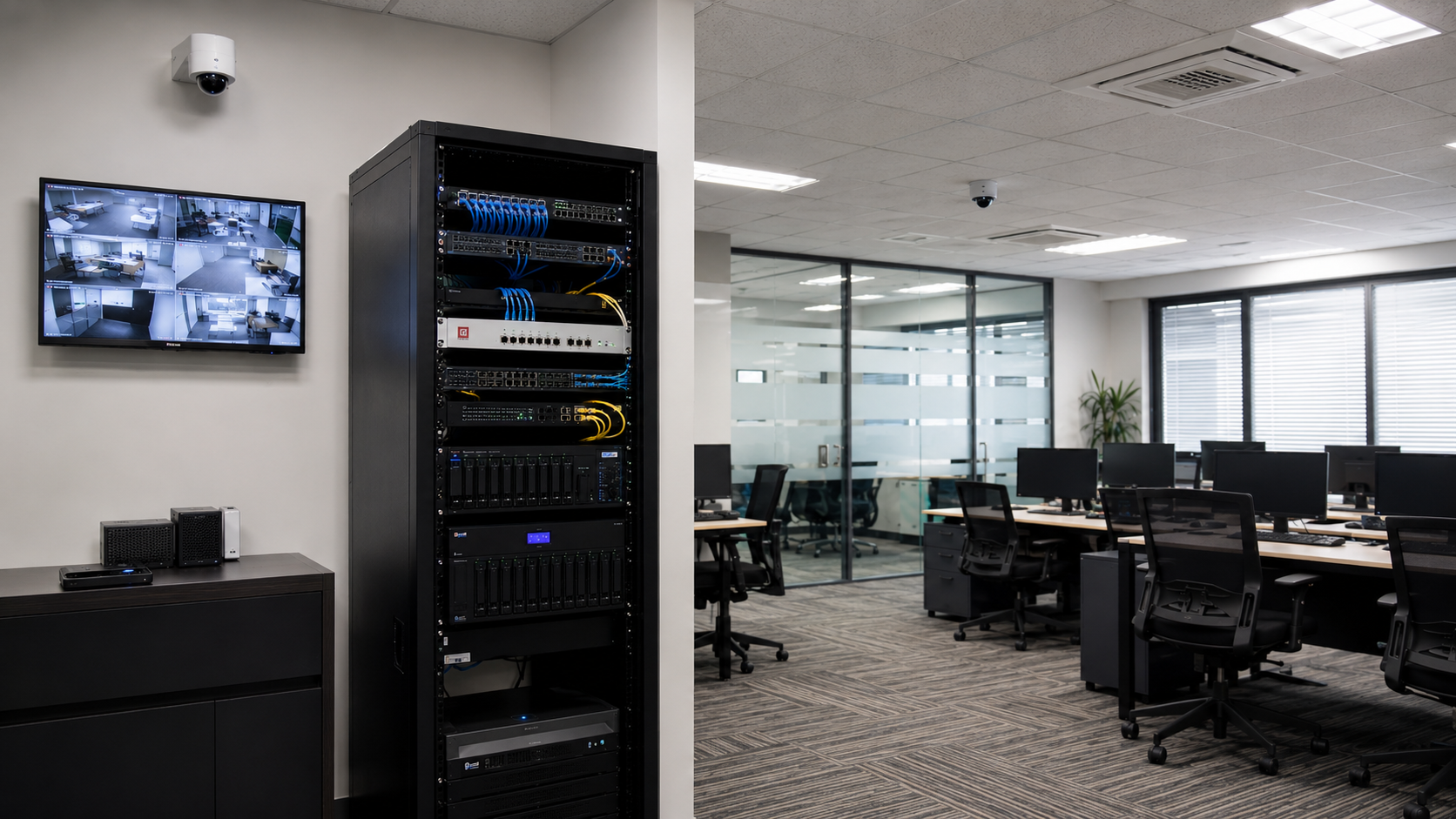

CCTV cameras send their recording stream through the office network to the NAS/QVR recording workflow.
The monitoring screen gives quick live-view checking, while storage planning supports playback and evidence review when needed.
The complete setup is maintained as one office infrastructure system, making support, upgrades and troubleshooting easier.
Only the most relevant real screenshots are shown here so the portfolio stays clean, focused and easy to review.
Shows Yoonow can plan office infrastructure as one connected system instead of only fixing devices one by one.
Combines firewall, network, storage and CCTV knowledge in a practical real-office workflow.
Protects sensitive details while still explaining the business value and technical scope clearly.
Gives clients confidence that the same team can handle installation, configuration, documentation and future support.
Yoonow Technologies can plan, configure and support a professional office setup with firewall security, NAS storage, CCTV recording, monitoring, documentation and future maintenance requirements.
